The Dispatch Map

This section will show you how to use the Dispatch Map in TrackIt Web.

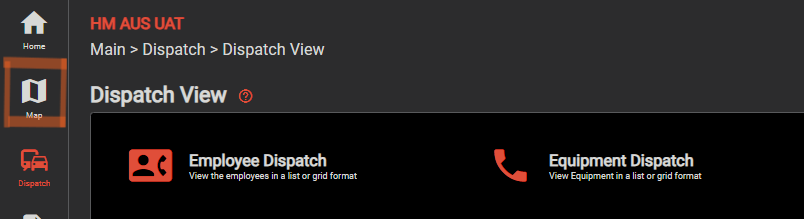

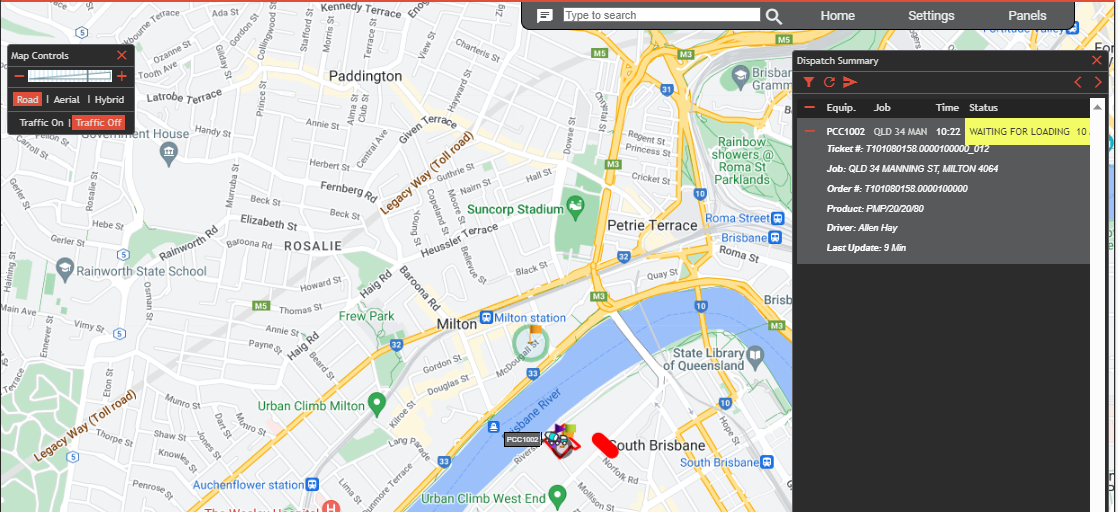

This is the Dispatch Map - It is replacing TrimView and is a much faster web application. Information on GPS is auto refreshed every 2 mins and is able to be manually refreshed every 30 seconds. Opening the Map is done by selecting Map on the Left of the Dispatch View Page on TrackIt Web.

Panels #

If you would like to hide or show any extra panels on the Map Select panels from the Top Left of Screen. This will give you a list of Options shown below. Map Controls and the Dispatch Summary are shown by Default on opening of the Map but can be hidden if you wish.

Map Controls #

These define how you see the map. Options to turn Traffic on and off; also to change to a Satellite image or a hybrid of both Satellite and Road. Scroll on the mouse wheel to Zoom in the map.

Dispatch Summary #

This shows all available and signed on Vehicles depending on your Filter Settings or User Prefernces. This is governed by the selected Dispatch Group to show only those trucks to you on the map.

If you ticket the Truck the Job Name will show and also the current Status for the truck is shown. The Plus/ Minus button will open the Truck and give you extra details on the Driver, the ticket number and Product and also the Last Update to this information.

The Dispatch Summary Panel

A truck Ticketed on the Dispatch Summary

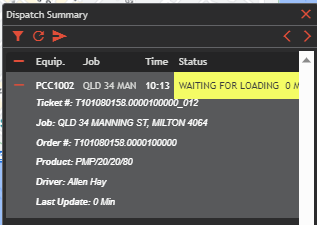

Expanded Information on the Dispatch Summary

Directions #

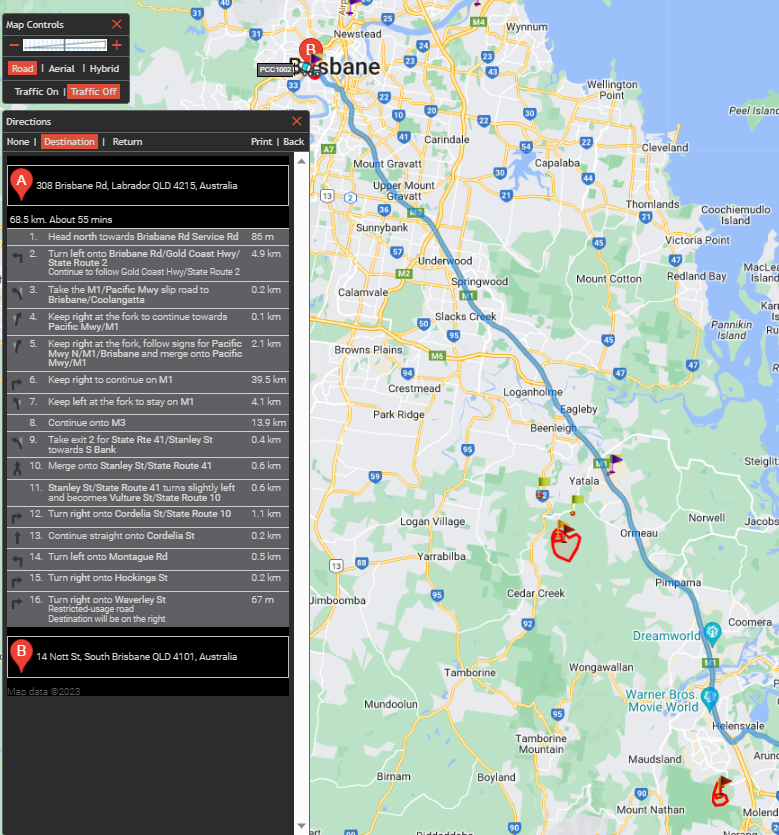

Directions Panel will show you a panel where you can see a route from an Address or Hotspot to either of those. This does not take into account any Truck Restrictions and will jsut show the quickest route to a location.

Find #

This Panel will allow to search for an Address, Hotspot, Geogates, Equipment or Lat Long Coordinates. If you are looking for a certain address or jobsite it is easily searched for using this panel.

Find Near #

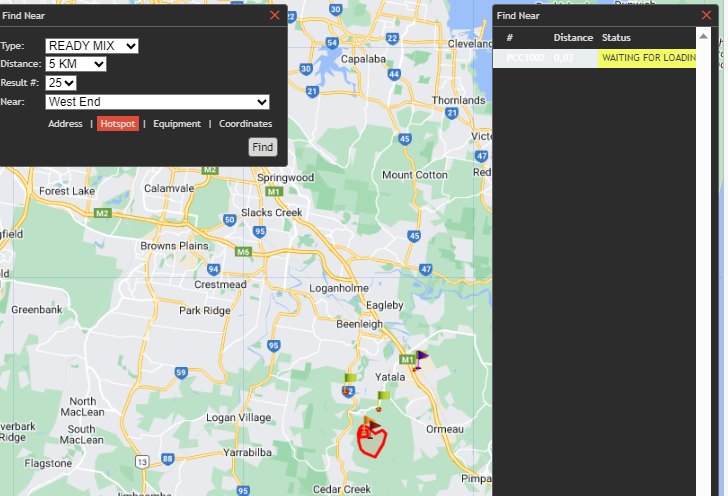

This Panel will allow you to do a find function for a truck near a certain location. Select the type of truck you are looking for in a km radius of either an Address or Hotspot or Truck. This will then show you the selected amoutn of results to your search

Quick Search #

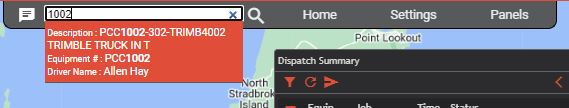

If looking for a Truck quickly - there is the ability to Quick Search. Simply type the number in the field and this will show you the at a glance summary - click this and you will have this Truck centred on the Map.

Messaging #

Message History #

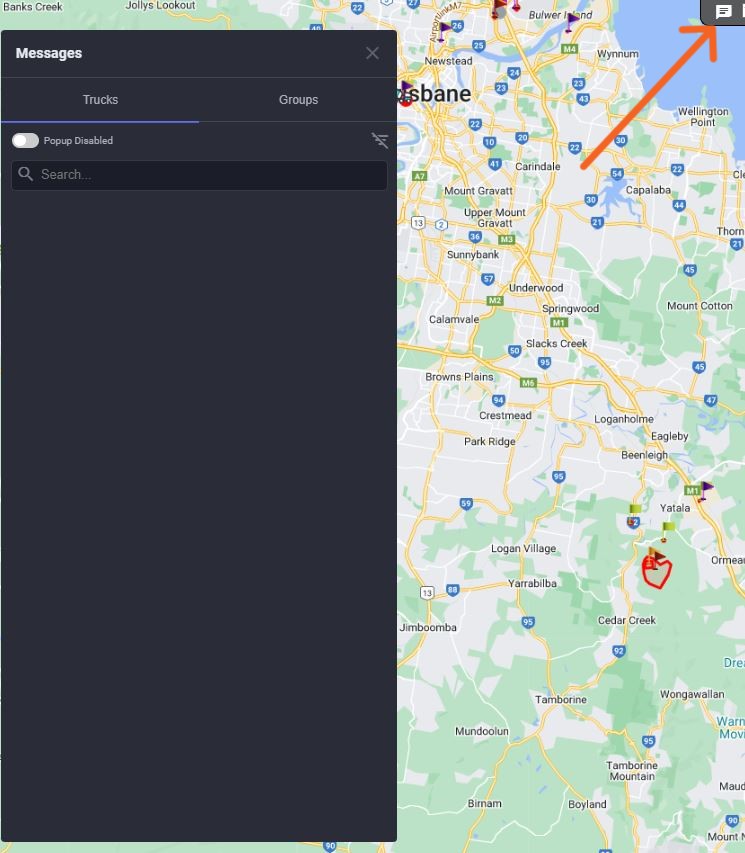

There is many ways to Text Message a Truck either from Tesys, TrackIt Home or the Dispatch Map. To open the message history from trucks use the Message Icon near Quick Search

Message Truck #

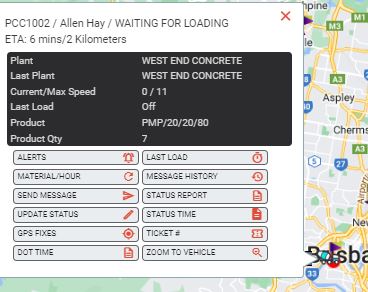

To send a message Direct to a Truck, Mouse over the Truck Icon and left click. Then Select Send Message

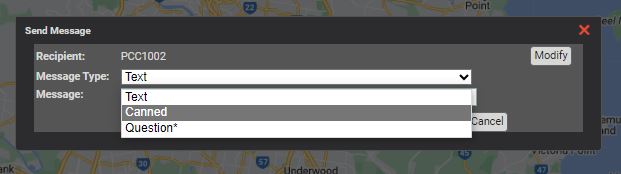

Choose what type of message to send and click Send

Multiple Messaging #

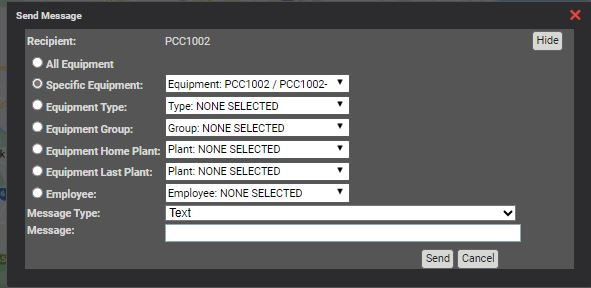

To send a message to multiple trucks based on a few different factors; click modify in the top right. This will allow you to multi message trucks based on the home plant, the group or their type. If you would like to message certain Drivers this is also possible. Simply select the drop down and hold CTRL and click the ones you want to message.

Hotspots #

Home Plants #

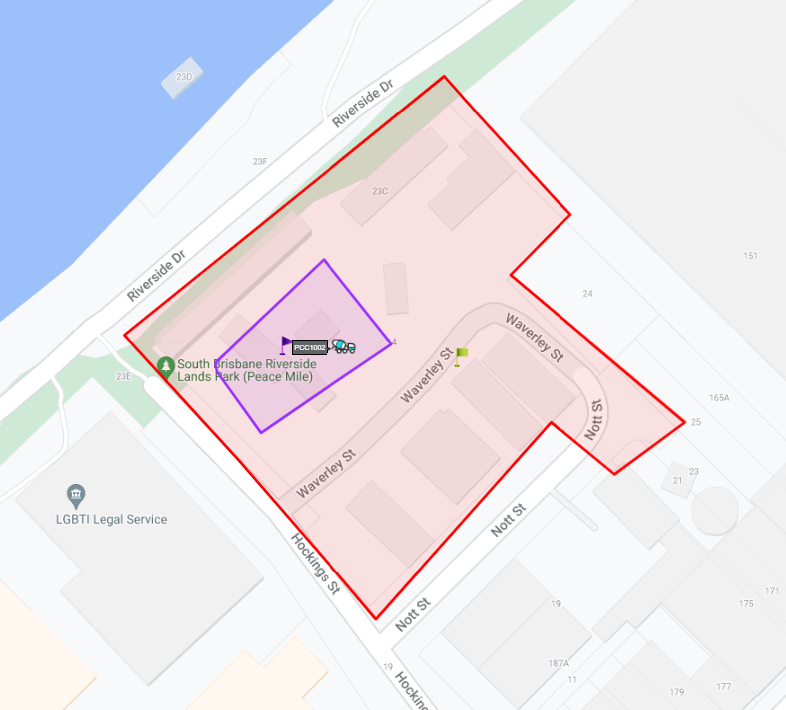

Hotspots are the replacement Name for Delivery Sites, Home Plants and Parking Locations. – Home Plants for a RMX Truck are a Red Polygon with a Green Flag.

– Loading Zones for RMX Trucks are Purple Polygons

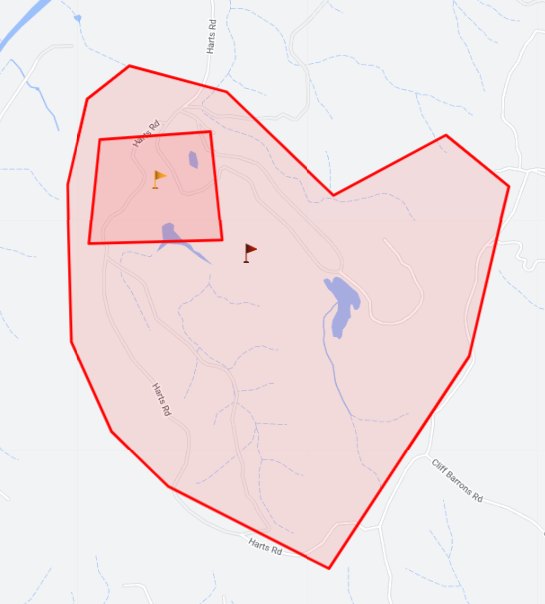

– Home Plants for Aggregate Trucks are a Red Polygon with a Red Flag.

– Loading Zones for Aggregate Trucks are Red Polygons with Orange Flags

Delivery Sites #

– Delivery Sites for all trucks will appear as a circle on the map. These can be made into a Polygon if it is a complex or often used site. Once made into a Polygon; the grow and move logic we have built in to automatically make the sites more relevant will not work. These will then always appear as the polygon shape.
